It is a cutting machine designed for marble and granite processing.

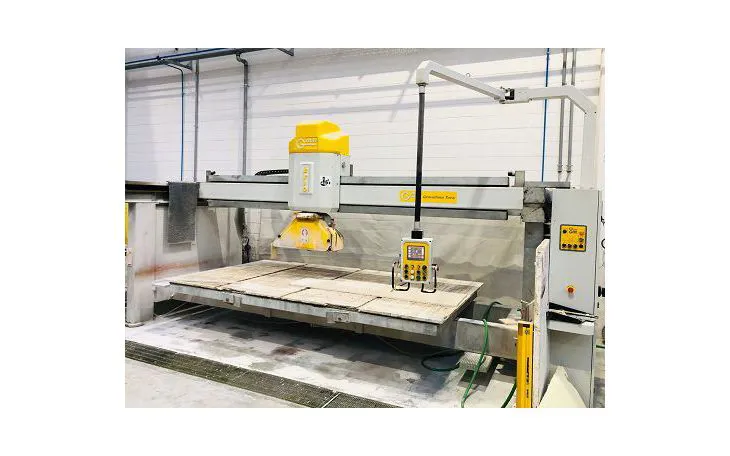

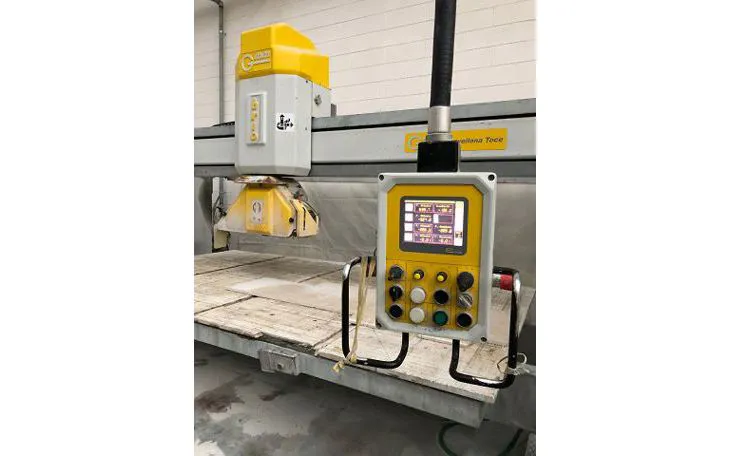

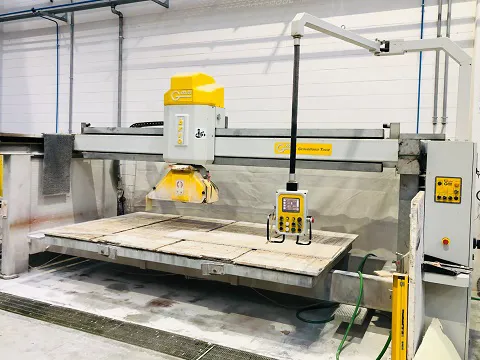

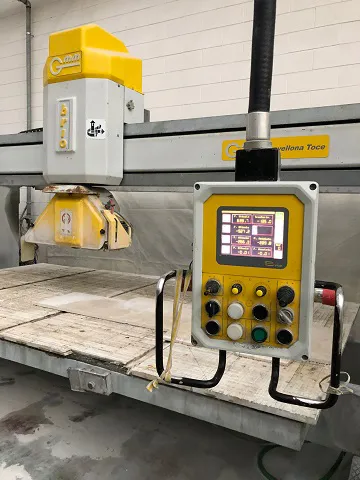

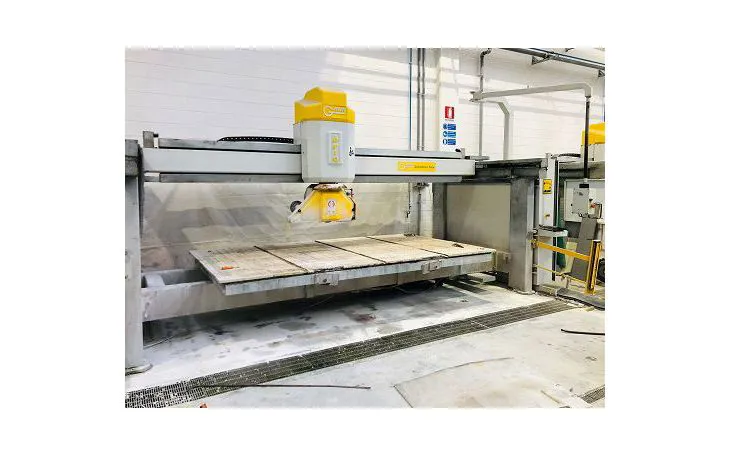

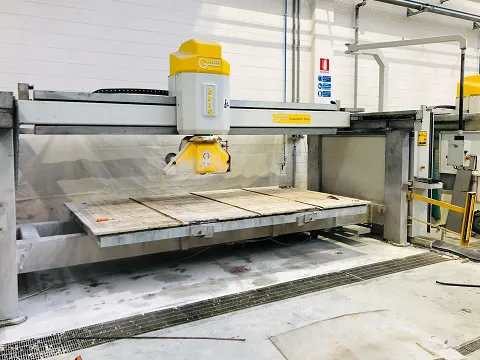

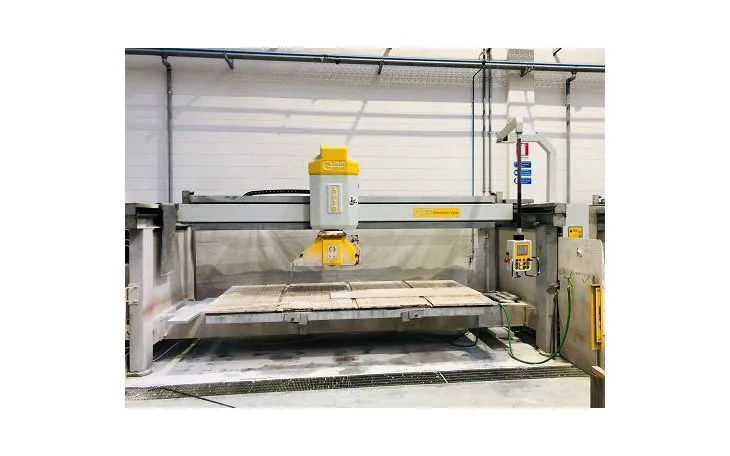

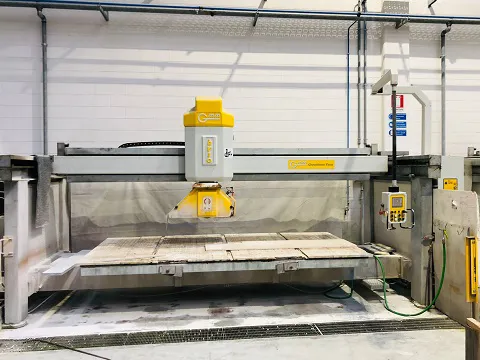

Monoblock automatic bridge milling machine with a head that tilts up to 45° and rotates 180°. It features a pneumatic tilting table.

BRAND: GMM
MODEL: BRIO 35 TO
YEAR OF MANUFACTURE: 2009

TECHNICAL DATA:

OVERALL DIMENSIONS: 6,300 x 4,300 x H. 2,800 mm
USEFUL WORKING DIMENSIONS:X AXIS: 3,500 mm
Y AXIS: 2,100 mm
Z AXIS: 420 mm
USEFUL WORKING THICKNESS: 205 mm
MAXIMUM DISC DIAMETER: 625 mm
WORKING TABLE SIZE: 2,000 x 3,400 mm
TOTAL WEIGHT: 3,600 Kg
FEATURES:

MONOBLOCK STRUCTURE
MANUAL TILTING HEAD (45°)
MOTORIZED 180° ROTATING HEAD
PNEUMATIC TILTING TABLE
DISC MOTOR POWER: 13 kW (S6)
DISC FEED SPEED CONTROLLED BY INVERTER: 0 ÷ 18 m/min
CONDITIONS:

In excellent condition, fully operational – disassembled.
Note: Used machine available unless sold.

Note: The technical data is purely indicative.
