This is a cutting machine designed for marble and granite processing.

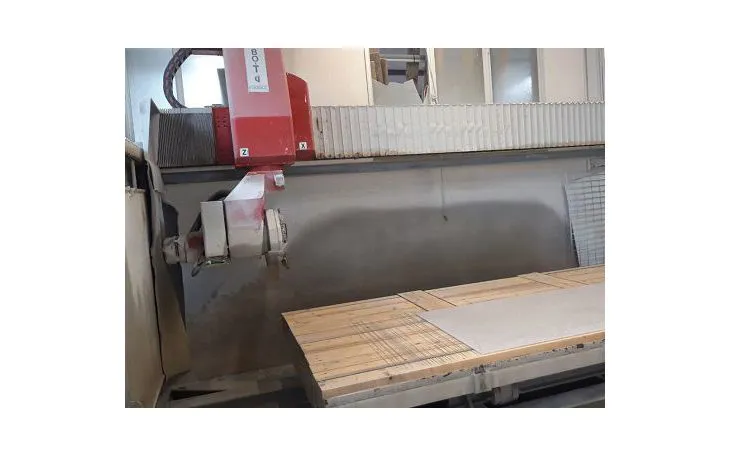

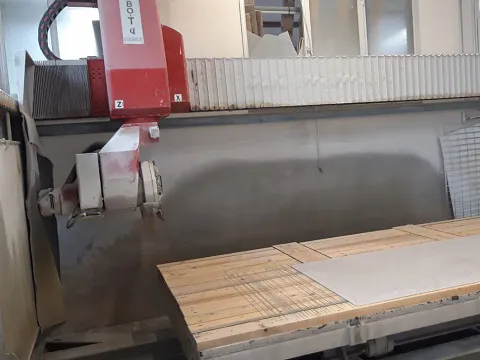

Used 5-axis interpolated CNC bridge saw. The machine features a monoblock structure, with an inclinable and rotatable head, and a motorized tilting table. The machine is in perfect condition.

Brand: NOAT
Model: QUBO-T
Year of Manufacture: 2014

Technical Data:

Useful Working Dimensions:

X-axis: 3,500 mm
Y-axis: 1,900 mm
Z-axis: 450 mm
Max. Disk Diameter: 390 – 625 mm
Overall Dimensions: 6,130 x 3,260 x 3,070 mm
Total Weight: Approximately 4,700 Kg
CNC Machine, 5 Interpolated Axes

Complete with:

Monoblock Structure

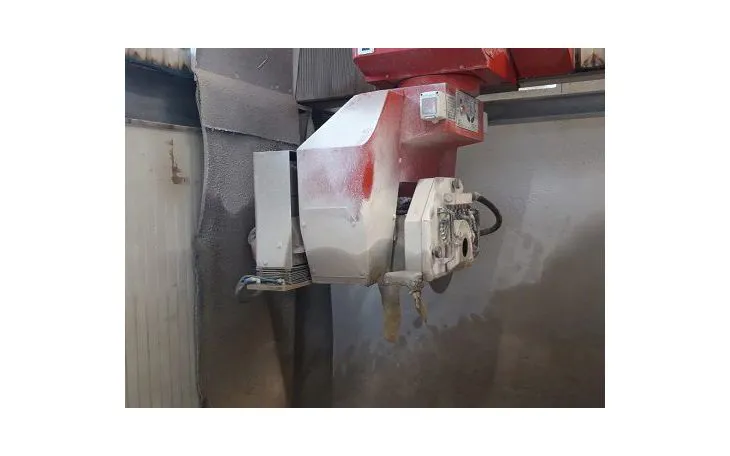

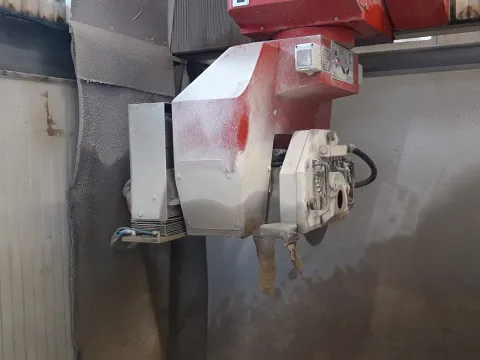

Head Tiltable Up to 90°
Rotatable Head up to 360°
Motorized Tilting Table
Spindle Attachment: ISO40
CAD-CAM Software
Condition:

Machine in perfect working condition – still installed.

Note:
Used machinery available unless sold.

Note:
The technical data is purely indicative.
